¿Cómo conectar el control de acceso SIP o el intercomunicador SIP a NVR?

Introducción

Visión general

Este documento describe cómo conectar dispositivos SIP de control de acceso y SIP de interfonía a un NVR, principalmente para realizar grabación de video en productos terminales industriales. El cliente NVR envía comandos RTSP al terminal de video industrial, y el terminal devuelve el flujo de video de la cámara integrada al cliente para visualización y grabación de video en tiempo real.
NVR significa Grabador de Video en Red, que es el componente de almacenamiento y reenvío de un sistema de videovigilancia en red. El NVR trabaja con codificadores de video o cámaras IP para completar las funciones de grabación, almacenamiento y reenvío de video.

Modelos aplicables

BHP-SOS16, BHP-SOS18, BHP-SOS30, BHP-SOS30V, BHP-SOS33V, BK-DAB-PA2, BHP-SOS10, BHP-SOS10V, BHP-SOS11, BHP-SOS11V, BHP-SOS16V.

Preparación del entorno de grabación NVR

1.3.1 Preparación del dispositivo

Prepare un terminal de video industrial con cámara integrada y un NVR Hikvision o Dahua.

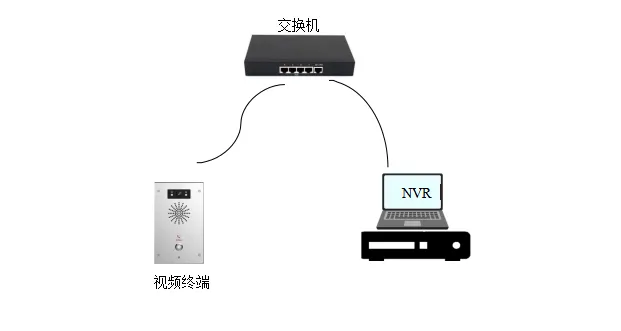

1.3.2 Diagrama de conexión de red

Nota: El diagrama de red anterior es solo para uso en LAN. Para implementación en red pública, comuníquese con nuestro equipo de soporte técnico para obtener ayuda.

Procedimiento de operación para agregar terminales al NVR

Tomando como ejemplo el NVR de Hikvision

① Inicie sesión en la interfaz web del NVR a través de un navegador.
Iniciar sesión en la interfaz web del NVR
② Vaya a Configuración - Gestión de canales.
Módulo de gestión de canales de configuración
③ Configure el protocolo personalizado:

  • Tipo de protocolo: RTSP

  • Protocolo de transferencia: Automático

  • Puerto: 554

  • Ruta del recurso: Copie la URL del flujo principal de Configuración de control de acceso - Configuración de video - Información RTSP

Nota: La ruta del menú varía según el modelo del dispositivo. Para dispositivos de interfonía, busque la URL RTSP en Configuración de interfonía - Configuración de video (Configuración de la cámara).

Configuración de video de interfonía

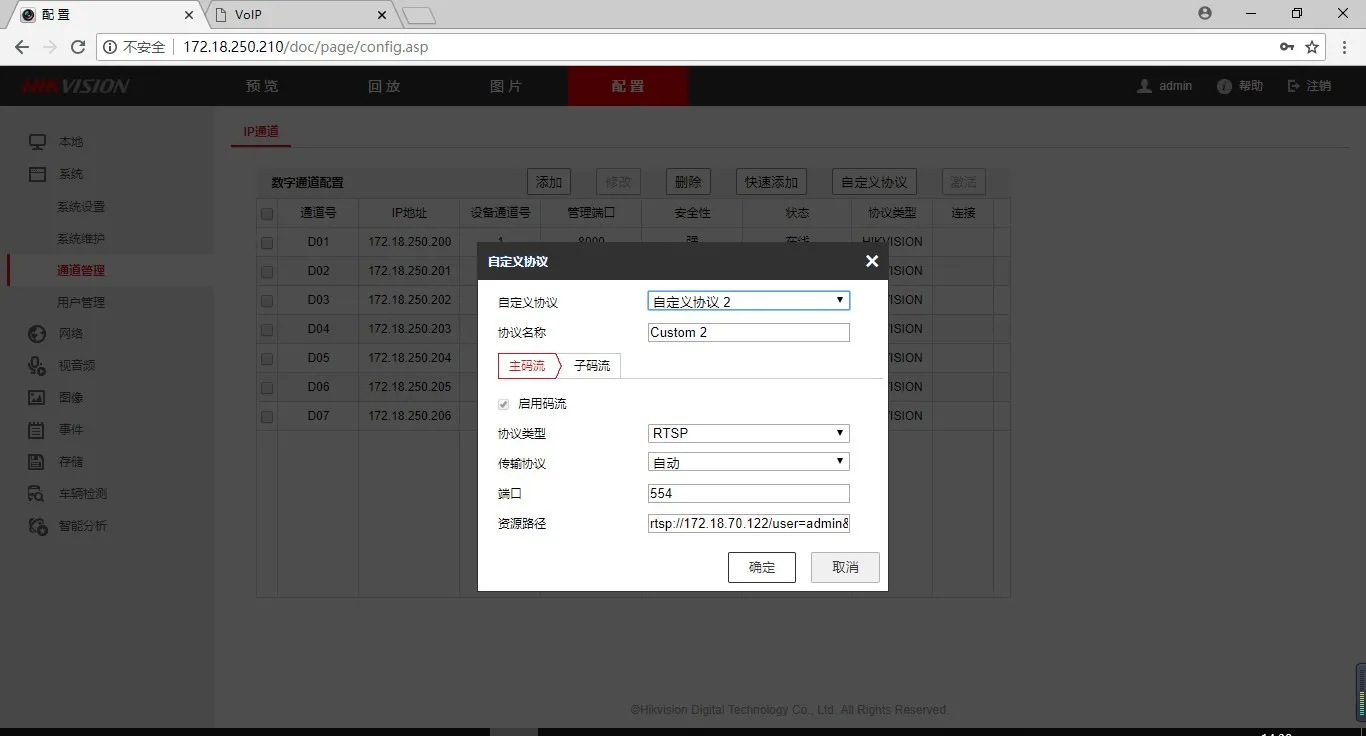

Configuración de canal personalizado
④ Configuración de canal IP - Agregar:

  • Dirección del canal IP: Dirección IP del dispositivo SIP de control de acceso / interfonía SIP

  • Tipo de protocolo: Nombre del protocolo personalizado que creó

  • Puerto de gestión: Use el valor predeterminado del protocolo personalizado

  • Nombre de usuario: Nombre de usuario personalizado

  • Contraseña: Contraseña personalizada

  • Confirmar contraseña: Igual que la contraseña anterior

  • Protocolo de transferencia: Predeterminado

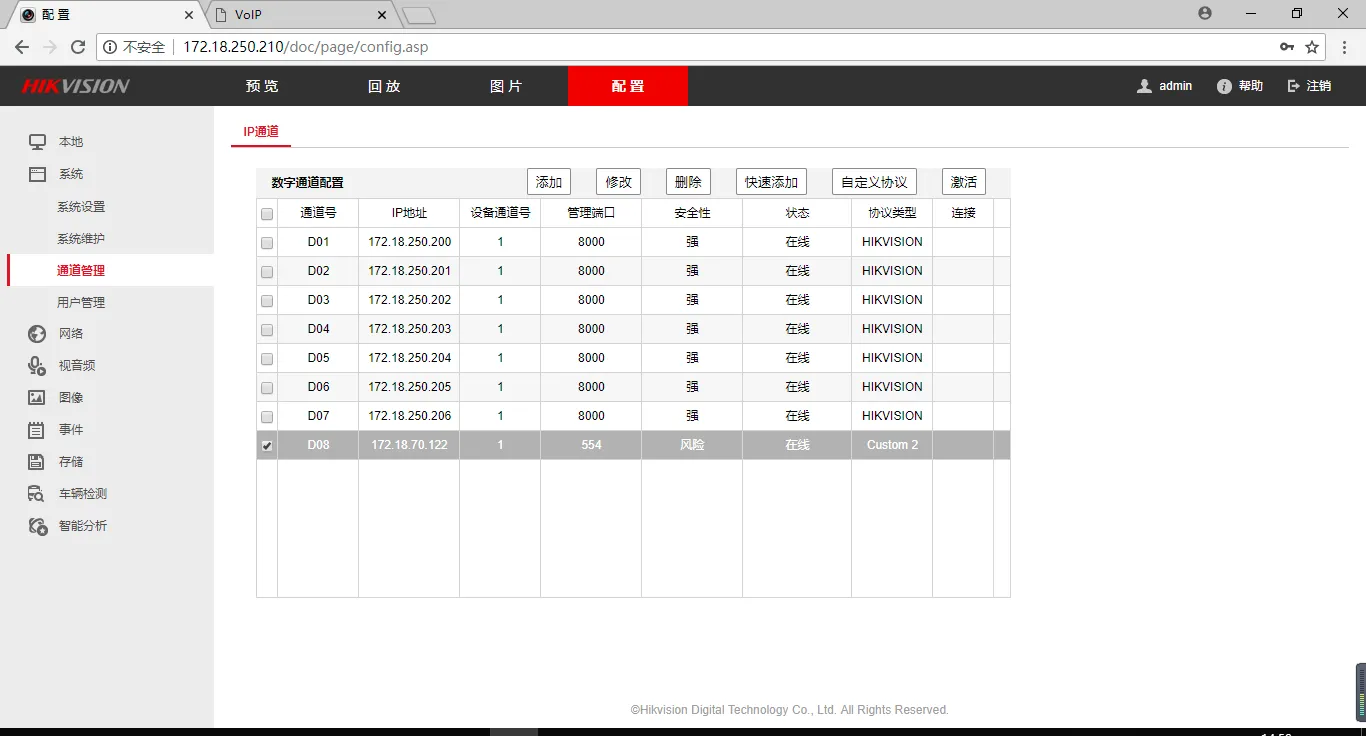

⑤ Agregado exitosamente, el estado muestra En línea.
Interfaz de NVR agregado exitosamente
⑥ El video del canal correspondiente se puede ver en la página de Vista previa.
